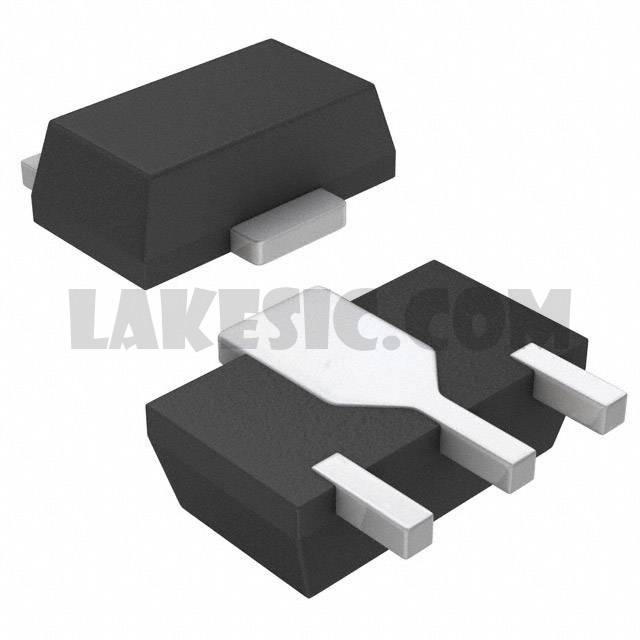

2SC3649T-TD-E

2SC3649T-TD-E

Part Number2SC3649T-TD-E

ManufacturerON Semiconductor

DescriptionTRANS NPN 160V 1.5A SOT89-3

Datasheet2SA1419/2SC3649

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 160V 1.5A 120MHz 500mW Surface Mount PCP

To learn about the specification of 2SC3649T-TD-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SC3649T-TD-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SC3649T-TD-E.
We are offering 2SC3649T-TD-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SC3649T-TD-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SA1419/2SC3649
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	160V
Vce Saturation (Max) @ Ib, Ic	450mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 5V
Power - Max	500mW
Frequency - Transition	120MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	PCP
Base Part Number	2SC3649
