2SC3975

Part Number2SC3975

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN 500V 10A TOP-3F

Datasheet2SC3975 Datasheet

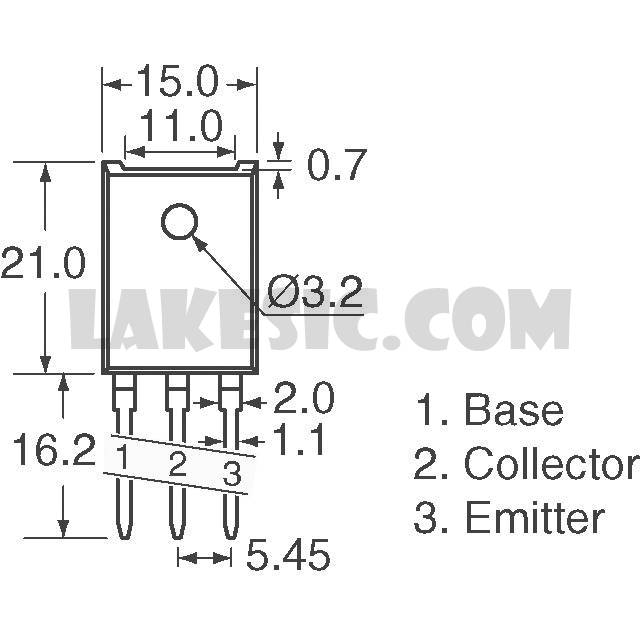

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 500V 10A 20MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SC3975, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SC3975 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SC3975.
We are offering 2SC3975 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SC3975 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SC3975 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

10A

Voltage - Collector Emitter Breakdown (Max)

500V

Vce Saturation (Max) @ Ib, Ic

1V @ 1.2A, 6A

Current - Collector Cutoff (Max)

100µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

8 @ 6A, 5V

Power - Max

Frequency - Transition

20MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
