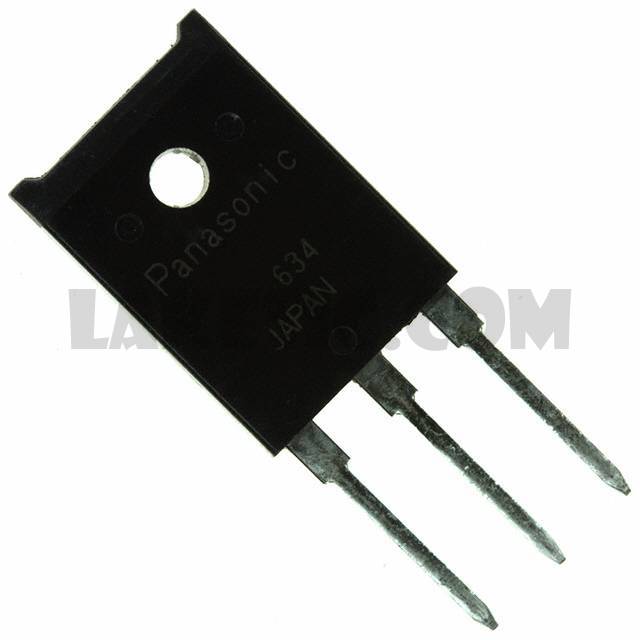

2SC4420

Part Number2SC4420

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN 800V 3A TOP-3F

Datasheet2SC4420 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 800V 3A 10MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SC4420, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SC4420 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SC4420.
We are offering 2SC4420 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SC4420 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SC4420 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

800V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 160mA, 800mA

Current - Collector Cutoff (Max)

50µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

6 @ 800mA, 5V

Power - Max

Frequency - Transition

10MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
