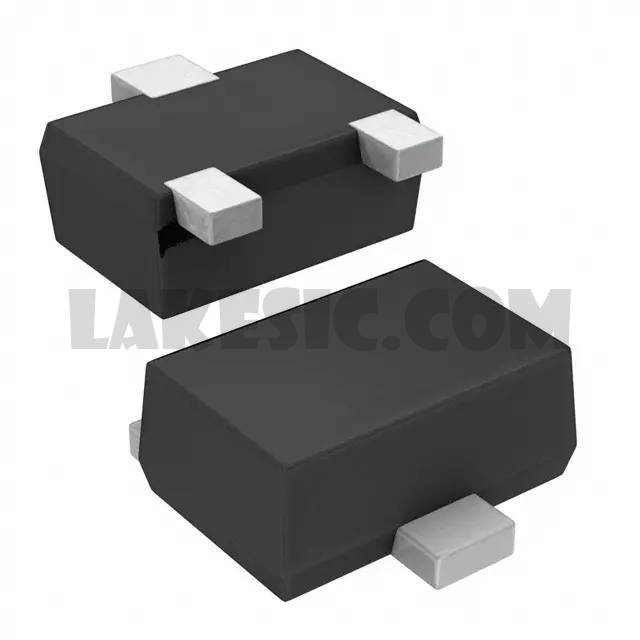

2SCR523UBTL

2SCR523UBTL

Part Number2SCR523UBTL

ManufacturerRohm Semiconductor

DescriptionTRANS NPN 50V 0.1A UMT3F

Datasheet2SCR523M,EB,UB

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 50V 100mA 350MHz 200mW Surface Mount UMT3F

To learn about the specification of 2SCR523UBTL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SCR523UBTL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SCR523UBTL.
We are offering 2SCR523UBTL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SCR523UBTL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	2SCR523M,EB,UB
Standard Package	3000
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	120 @ 1mA, 6V
Power - Max	200mW
Frequency - Transition	350MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	UMT3F
