2SCR586JFRGTLL


2SCR586JFRGTLL

Part Number2SCR586JFRGTLL

Manufacturer

Description

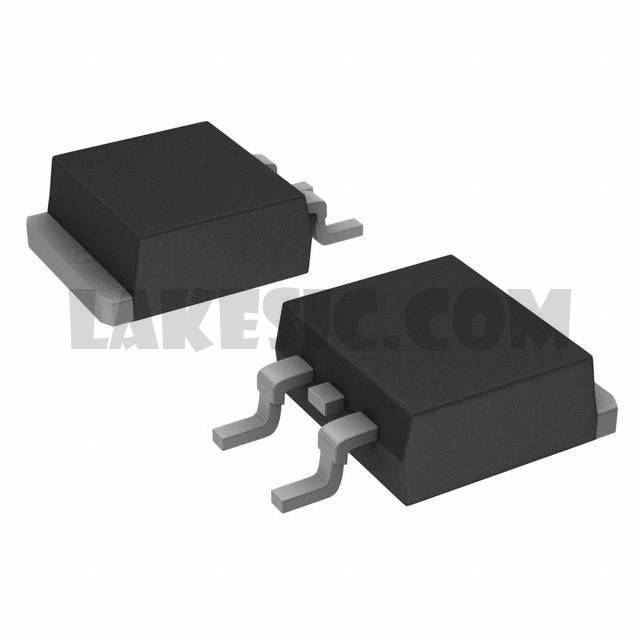

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

2SCR586JFRGTLL - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Standard Package1000
ManufacturerRohm Semiconductor
SeriesAutomotive, AEC-Q101
PackagingTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5A
Voltage - Collector Emitter Breakdown (Max)80V
Vce Saturation (Max) @ Ib, Ic300mV @ 100mA, 2A
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce120 @ 500mA, 3V
Power - Max40W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device PackageLPTL
