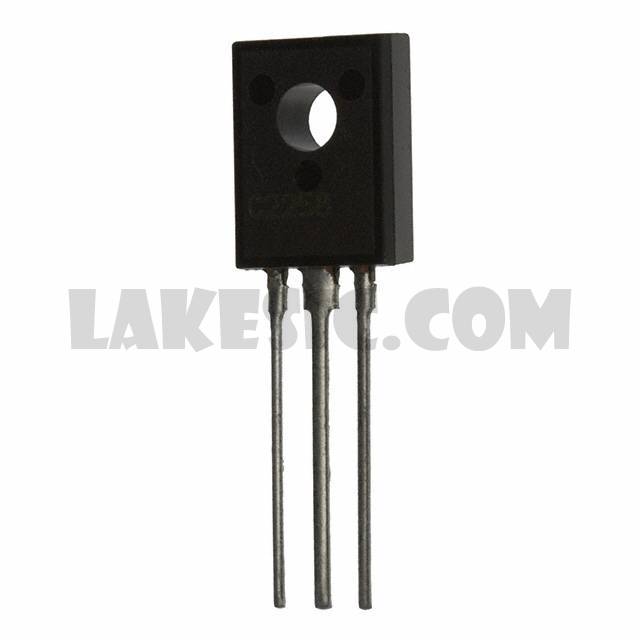

2SD0946AR

Part Number2SD0946AR

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN DARL 50V 1A TO-126

Datasheet2SD0946(A,B) Datasheet

Package / CaseTO-225AA, TO-126-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 50V 1A 150MHz 1.2W Through Hole TO-126B-A1

To learn about the specification of 2SD0946AR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SD0946AR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SD0946AR.
We are offering 2SD0946AR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SD0946AR - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SD0946(A,B) Datasheet

Standard Package

200

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN - Darlington

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1.8V @ 1mA, 1A

Current - Collector Cutoff (Max)

100nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

8000 @ 1A, 10V

Power - Max

1.2W

Frequency - Transition

150MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-225AA, TO-126-3

Supplier Device Package

TO-126B-A1
