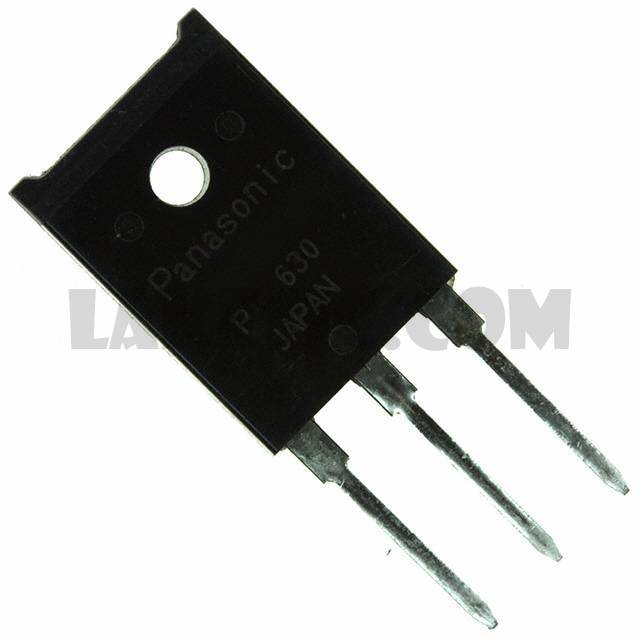

2SD17050P

Part Number2SD17050P

ManufacturerPanasonic Electronic Components

DescriptionTRANS NPN 80V 10A TOP-3F

Datasheet2SD1705 Datasheet

Package / CaseTOP-3F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 10A 20MHz 3W Through Hole TOP-3F-A1

To learn about the specification of 2SD17050P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SD17050P with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SD17050P.
We are offering 2SD17050P for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SD17050P - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SD1705 Datasheet

Standard Package

Manufacturer

Panasonic Electronic Components

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Current - Collector (Ic) (Max)

10A

Voltage - Collector Emitter Breakdown (Max)

80V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 1A, 10A

Current - Collector Cutoff (Max)

10µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

130 @ 3A, 2V

Power - Max

Frequency - Transition

20MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TOP-3F

Supplier Device Package

TOP-3F-A1
