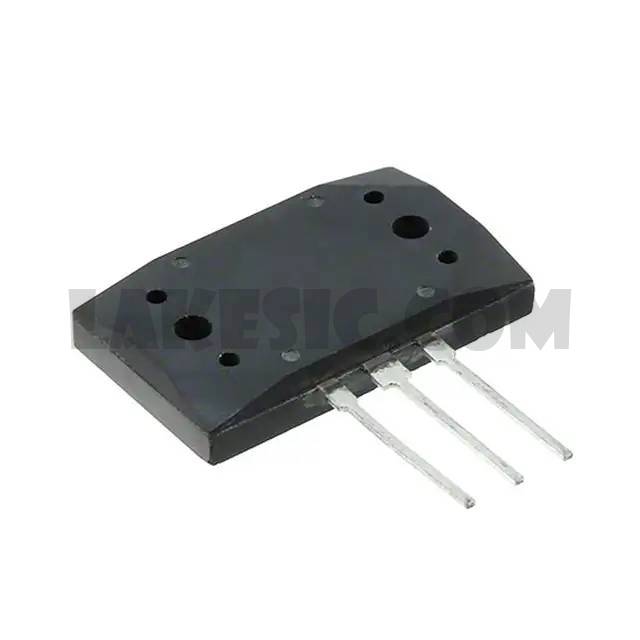

2SD2401

Part Number2SD2401

ManufacturerSanken

DescriptionTRANS NPN DARL 150V 12A MT200

Datasheet2SD2401

Package / Case3-ESIP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 150V 12A 55MHz 150W Through Hole MT-200

To learn about the specification of 2SD2401, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2SD2401 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2SD2401.
We are offering 2SD2401 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2SD2401 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

2SD2401

Standard Package

250

Manufacturer

Sanken

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN - Darlington

Current - Collector (Ic) (Max)

12A

Voltage - Collector Emitter Breakdown (Max)

150V

Vce Saturation (Max) @ Ib, Ic

2.5V @ 7mA, 7A

Current - Collector Cutoff (Max)

100µA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

5000 @ 7A, 4V

Power - Max

150W

Frequency - Transition

55MHz

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

3-ESIP

Supplier Device Package

MT-200
