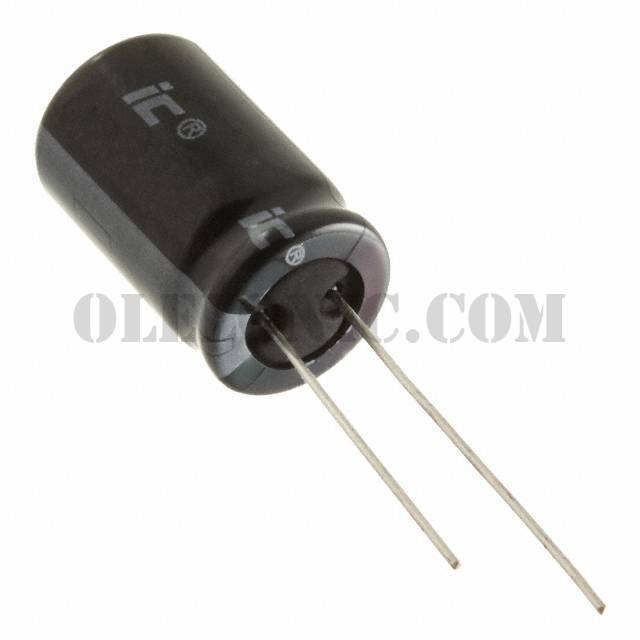

338CKH025M

Part Number338CKH025M

ManufacturerIllinois Capacitor

DescriptionCAP ALUM 3300UF 20% 25V T/H

DatasheetCKH/CKE Series Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 100.5mOhm @ 120Hz 2000 Hrs @ 105°C

To learn about the specification of 338CKH025M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 338CKH025M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 338CKH025M.
We are offering 338CKH025M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

338CKH025M - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	CKH/CKE Series Datasheet
Standard Package	100
Manufacturer	Illinois Capacitor
Series	CKH
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	100.5mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.8A @ 120Hz
Ripple Current @ High Frequency	2.52A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.240" (31.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
