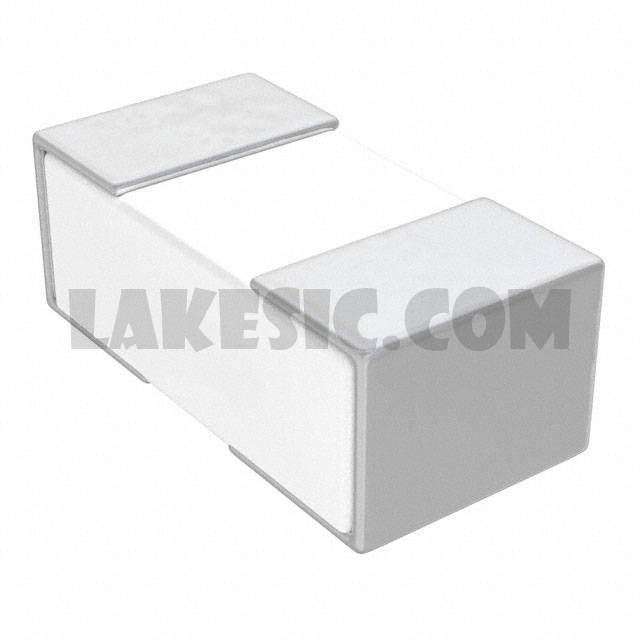

36401E20N8GTDF

Part Number36401E20N8GTDF

ManufacturerTE Connectivity Passive Product

DescriptionFIXED IND 20.8NH 90MA 2.55 OHM

Datasheet3640 Series Drawing

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description20.8nH Unshielded Thin Film Inductor 90mA 2.55Ohm Max 0402 (1005 Metric)

To learn about the specification of 36401E20N8GTDF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 36401E20N8GTDF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 36401E20N8GTDF.
We are offering 36401E20N8GTDF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

36401E20N8GTDF - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	3640 Series Drawing
Standard Package	1000
Manufacturer	TE Connectivity Passive Product
Series	3640, Sigma Inductors
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Thin Film
Material - Core	-
Inductance	20.8nH
Tolerance	±2%
Current Rating (Amps)	90mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	2.55Ohm Max
Q @ Freq	13 @ 500MHz
Frequency - Self Resonant	2.8GHz
Ratings	-
Operating Temperature	-
Inductance Frequency - Test	500MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.015" (0.37mm)
