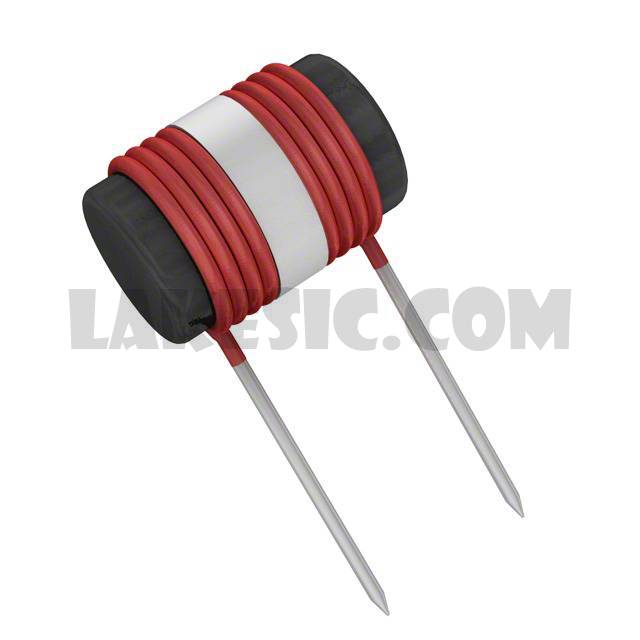

3HC-5

Part Number3HC-5

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 5UH 3A 15 MOHM TH

DatasheetHC(R) Series

Package / CaseRadial, Horizontal Cylinder (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5µH Unshielded Wirewound Inductor 3A 15mOhm Max Radial, Horizontal Cylinder (Open)

To learn about the specification of 3HC-5, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3HC-5 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 3HC-5.
We are offering 3HC-5 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

3HC-5 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

HC(R) Series

Standard Package

Manufacturer

API Delevan Inc.

Series

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

5µH

Tolerance

±10%

Current Rating (Amps)

Current - Saturation

19A

Shielding

Unshielded

DC Resistance (DCR)

15mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal Cylinder (Open)

Supplier Device Package

Size / Dimension

0.625" Dia x 0.875" L (15.88mm x 22.23mm)

Height - Seated (Max)
