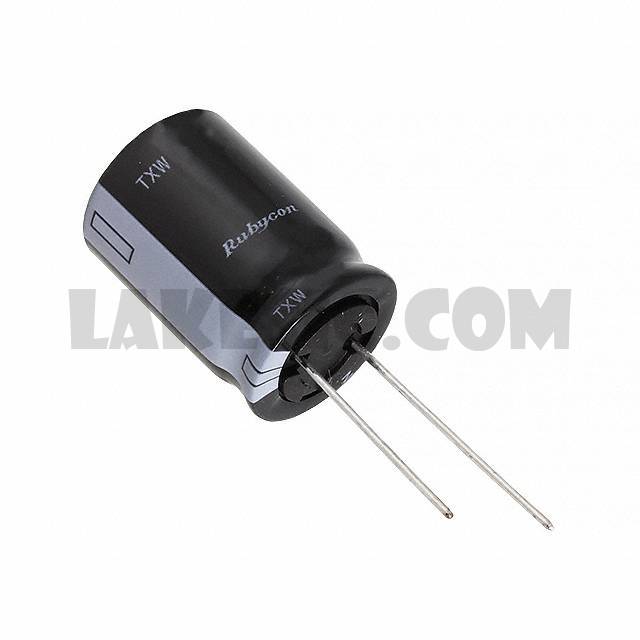

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	200
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	82µF
Tolerance	±20%
Voltage - Rated	420V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	560mA @ 120Hz
Ripple Current @ High Frequency	840mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

250TXW180MEFC18X25	Rubycon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
220TXW330MEFC18X35	Rubycon, 330µF 220V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW390MEFC12.5X55	Rubycon, 390µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW270MEFC12.5X40	Rubycon, 270µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW100MEFC8X40	Rubycon, 100µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
200TXW220MEFC16X30	Rubycon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
400TXW100MEFC18X30	Rubycon, 100µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW390MEFC18X45	Rubycon, 390µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW330MEFC12.5X50	Rubycon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
350TXW47MEFC10X35	Rubycon, 47µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW33MEFC12.5X30	Rubycon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
450TXW120MEFC18X40	Rubycon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View

420TXW82MEFC18X25

Part Number420TXW82MEFC18X25
