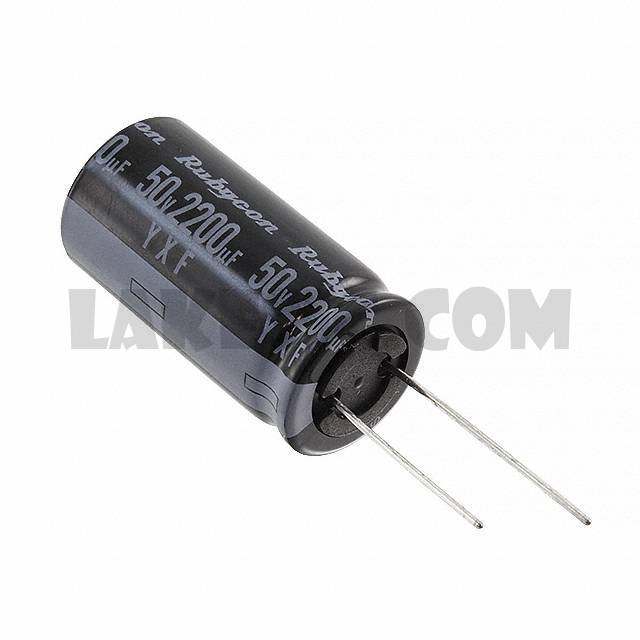

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	200
Manufacturer	Rubycon
Series	YXF
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.76A @ 120Hz
Ripple Current @ High Frequency	2.2A @ 100kHz
Impedance	25 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
