Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	1
Manufacturer	Rubycon
Series	YXF
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	539mA @ 120Hz
Ripple Current @ High Frequency	770mA @ 100kHz
Impedance	120 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

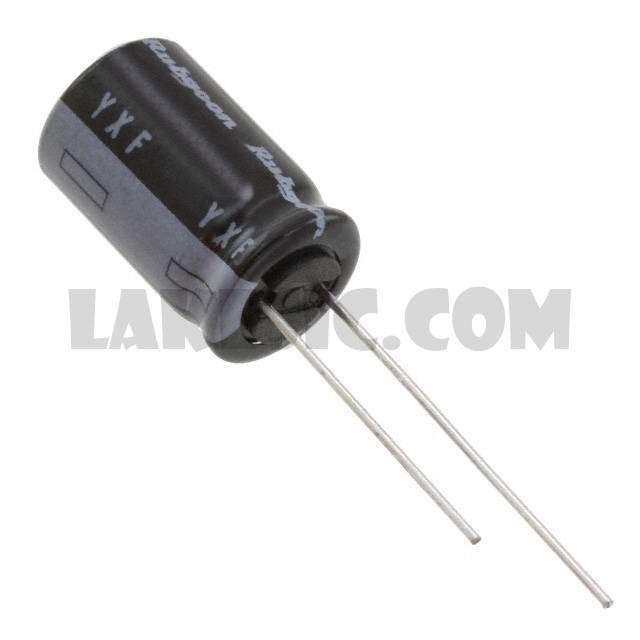

50YXF220MEFCT810X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF330MEFCT810X20	Rubycon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
16YXF220MEFC8X11.5	Rubycon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF22MEFCT15X11	Rubycon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
25YXF330MEFCT810X12.5	Rubycon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF47MEFCTA6.3X11	Rubycon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
25YXF470MEFC10X16	Rubycon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
10YXF100MEFCT15X11	Rubycon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C, YXF	View
50YXF100MEFCT78X11.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
25YXF100MEFCTA6.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
10YXF470MEFC8X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXF	View
25YXF47MEFCTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View

50YXF220MEFCT810X16

Part Number50YXF220MEFCT810X16
