Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	1
Manufacturer	Rubycon
Series	YXF
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	175mA @ 120Hz
Ripple Current @ High Frequency	250mA @ 100kHz
Impedance	400 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16YXF100MEFC6.3X11	Rubycon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
16YXF330MEFC8X11.5	Rubycon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF330MEFCT810X20	Rubycon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
16YXF47MEFC5X11	Rubycon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
25YXF47MEFCTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
16YXF1000MEFCT810X20	Rubycon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
25YXF1000MEFC12.5X20	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
25YXF47MEFCTA5X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
63YXF100MEFCT810X12.5	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
50YXF1MEFCT15X11	Rubycon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
50YXF220MEFC10X16	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
100YXF10MEFC6.3X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View

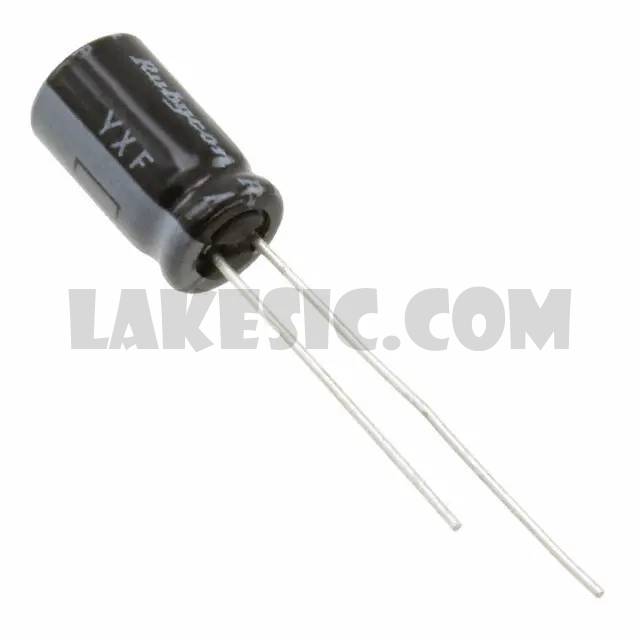

50YXF47MEFCTA6.3X11

Part Number50YXF47MEFCTA6.3X11
