52305C


52305C

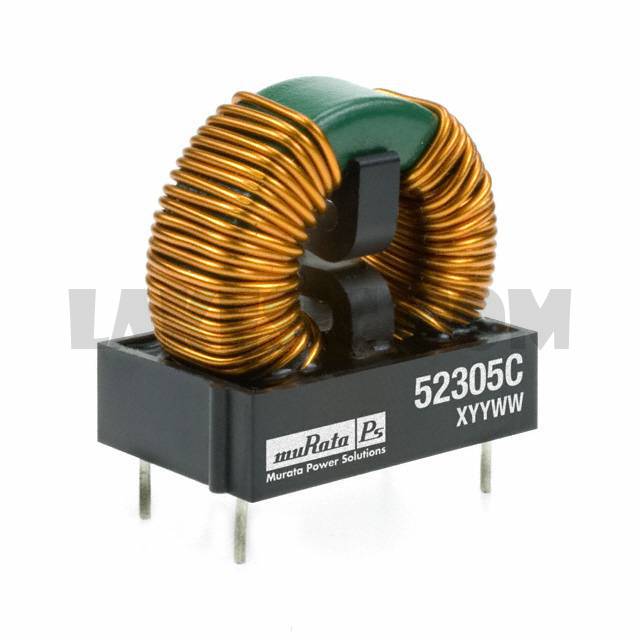

Part Number52305C

Manufacturer

Description

Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

52305C - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package40
ManufacturerMurata Power Solutions Inc.
Series5200
PackagingTray
Part StatusActive
Filter TypePower Line
Number of Lines2
Current Rating (Max)3.5A
DC Resistance (DCR) (Max)45mOhm
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeThrough Hole
Size / Dimension0.945" L x 0.642" W (24.00mm x 16.30mm)
Height (Max)1.220" (31.00mm)
Package / CaseVertical, 4 PC Pin
