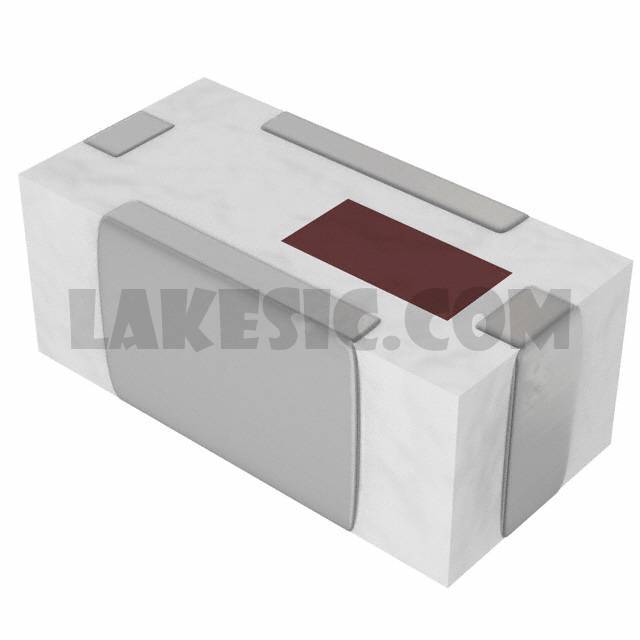

5515BP15B975E

Part Number5515BP15B975E

ManufacturerJohanson Technology Inc.

DescriptionRF FILTER BAND PASS 5.5GHZ 0805

Datasheet5515BP15B975

Package / Case0805 (2012 Metric), 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.5GHz Center Frequency Band Pass RF Filter (Radio Frequency) 975MHz Bandwidth 1.5dB 0805 (2012 Metric), 4 PC Pad

To learn about the specification of 5515BP15B975E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 5515BP15B975E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 5515BP15B975E.
We are offering 5515BP15B975E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

5515BP15B975E - Product Attributes

Categories	Filters / RF Filters
Datasheet	5515BP15B975
Standard Package	4000
Manufacturer	Johanson Technology Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Frequency	5.5GHz Center
Bandwidth	975MHz
Filter Type	Band Pass
Ripple	-
Insertion Loss	1.5dB
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric), 4 PC Pad
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height (Max)	0.041" (1.05mm)
