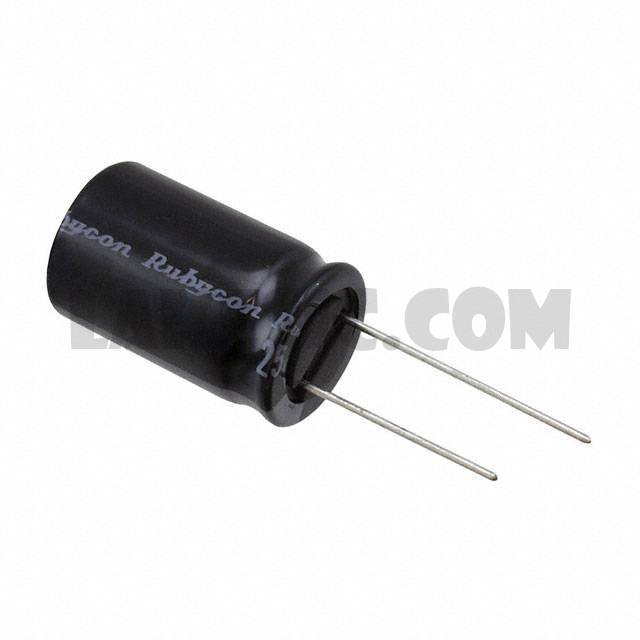

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	YXF Series
Standard Package	600
Manufacturer	Rubycon
Series	YXF
Packaging	Bulk
Part Status	Active
Capacitance	6800µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.48A @ 120Hz
Ripple Current @ High Frequency	1.85A @ 100kHz
Impedance	34 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

63YXF220MEFCT810X20	Rubycon, 220µF 63V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
6.3YXF6800MEFC16X25	Rubycon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, YXF	View
25YXF100MEFCT16.3X11	Rubycon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
50YXF2200MEFC18X35.5	Rubycon, 2200µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
50YXF22MEFCTA5X11	Rubycon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
35YXF1000MEFCG412.5X25	Rubycon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, YXF	View
25YXF47MEFCT15X11	Rubycon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
63YXF10MEFCT15X11	Rubycon, 10µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
25YXF220MEFC8X11.5	Rubycon, 220µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, YXF	View
10YXF470MEFCT78X11.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, YXF	View
100YXF10MEFC6.3X11	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View
50YXF1MEFCT15X11	Rubycon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, YXF	View

6.3YXF6800MEFC16X25

Part Number6.3YXF6800MEFC16X25
