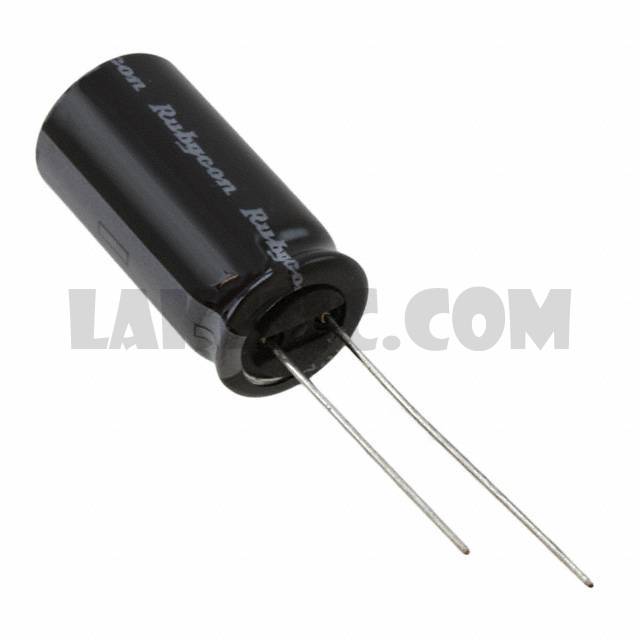

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.03A @ 120Hz
Ripple Current @ High Frequency	2.9A @ 100kHz
Impedance	15 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

16ZLH3300MEFC12.5X30	Rubycon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH680MEFC10X16	Rubycon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH1000MEFCT78X16	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
10ZLH680MEFC8X11.5	Rubycon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH330MEFCT810X12.5	Rubycon, 330µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH3300MEFC16X20	Rubycon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
10ZLH1800MEFC10X20	Rubycon, 1800µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH470MEFCT78X11.5	Rubycon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
35ZLH680MEFC10X23	Rubycon, 680µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH390MEFC8X20	Rubycon, 390µF 35V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View
63ZLH47MEFC6.3X11	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
63ZLH100MEFC8X16	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, ZLH	View

6.3ZLH4700MEFC12.5X25

Part Number6.3ZLH4700MEFC12.5X25
