63CNQ100

Part Number63CNQ100

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 100V 30A PRM3

Datasheet63CNQ080(SL,SM), 63CNQ100(SL,SM)

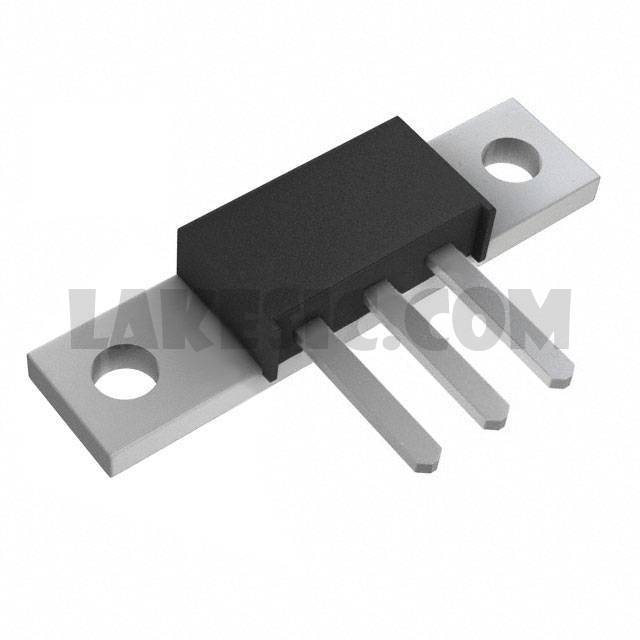

Package / CasePRM3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 100V 30A Through Hole PRM3

To learn about the specification of 63CNQ100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 63CNQ100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 63CNQ100.
We are offering 63CNQ100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

63CNQ100 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	63CNQ080(SL,SM), 63CNQ100(SL,SM)
Standard Package	48
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io) (per Diode)	30A
Voltage - Forward (Vf) (Max) @ If	930mV @ 30A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.5mA @ 100V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Through Hole
Package / Case	PRM3
Supplier Device Package	PRM3
