Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	RX30 Series
Standard Package	200
Manufacturer	Rubycon
Series	RX30
Packaging	Bulk
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	4000 Hrs @ 130°C
Operating Temperature	-40°C ~ 130°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	1.763A @ 120Hz
Ripple Current @ High Frequency	2.35A @ 100kHz
Impedance	43 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

100RX3010MTA8X11.5	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX304R7M8X11.5	Rubycon, 4.7µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
100RX3010MTA8X11.5	Rubycon, 10µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX30220M10X20	Rubycon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
10RX301000MCA10X20	Rubycon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
400RX304R7M10X16	Rubycon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX30100M10X16	Rubycon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX30100M10X12.5	Rubycon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
10RX30470M10X12.5	Rubycon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
200RX3022M10X16	Rubycon, 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
63RX3047M10X12.5	Rubycon, 47µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View
50RX3010M8X11.5	Rubycon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 130°C, RX30	View

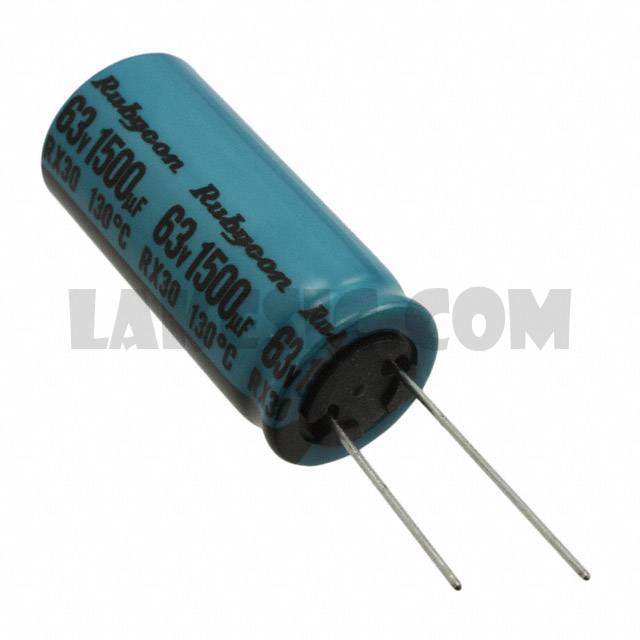

63RX301500M18X40

Part Number63RX301500M18X40
