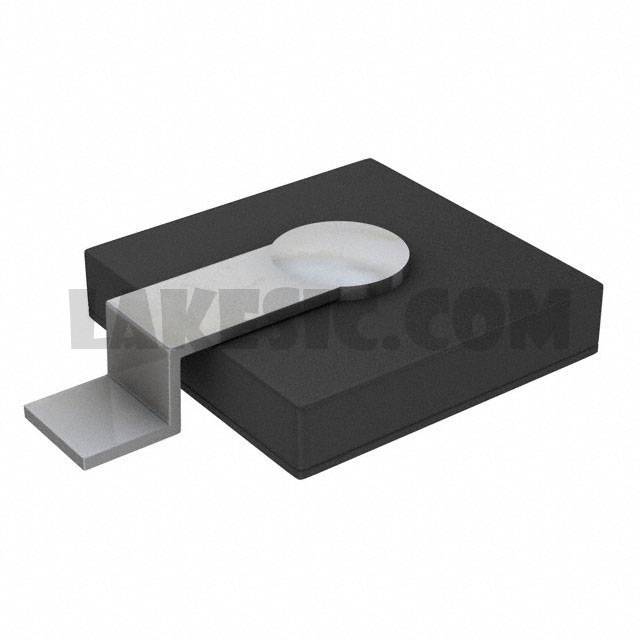

63SPB100A

63SPB100A

Part Number63SPB100A

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 100V 60A SPD-2A

Datasheet63SPB080(A), 63SPB100(A)

Package / CaseSPD-2A

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 100V 60A Surface Mount SPD-2A

To learn about the specification of 63SPB100A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 63SPB100A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 63SPB100A.
We are offering 63SPB100A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

63SPB100A - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	63SPB080(A), 63SPB100(A)
Standard Package	300
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	60A
Voltage - Forward (Vf) (Max) @ If	870mV @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1mA @ 100V
Capacitance @ Vr, F	1500pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	SPD-2A
Supplier Device Package	SPD-2A
Operating Temperature - Junction	-55°C ~ 175°C
