Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLH Series Datasheet
Standard Package	1000
Manufacturer	Rubycon
Series	ZLH
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	344mA @ 120Hz
Impedance	160 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

25ZLH1500MEFC12.5X20	Rubycon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
25ZLH1000MEFCT810X23	Rubycon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH1800MEFC16X40	Rubycon, 1800µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH560MEFC18X20	Rubycon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH1000MEFC18X31.5	Rubycon, 1000µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH1800MEFC10X23	Rubycon, 1800µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
16ZLH2200MEFC12.5X20	Rubycon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
63ZLH820MEFC12.5X40	Rubycon, 820µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
80ZLH12MEFC5X11	Rubycon, 12µF 80V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, ZLH	View
10ZLH1500MEFC10X16	Rubycon, 1500µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
100ZLH120MEFC10X23	Rubycon, 120µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View
35ZLH1500MEFC16X20	Rubycon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLH	View

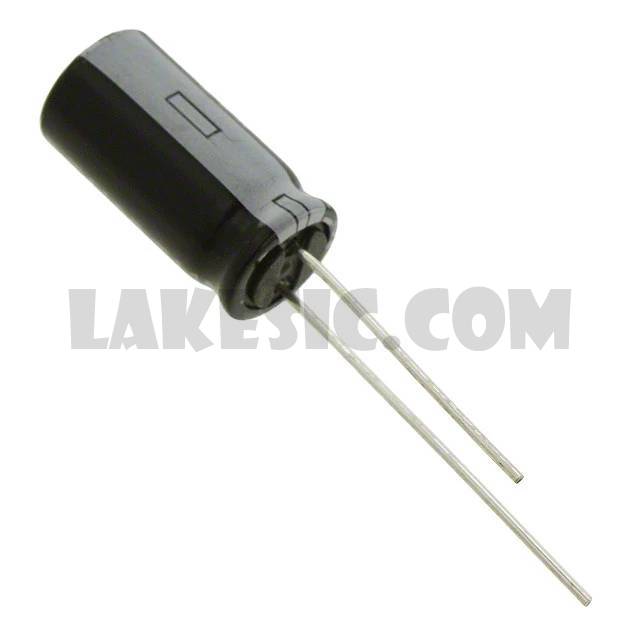

63ZLH100MEFC8X16

Part Number63ZLH100MEFC8X16
