Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	6A05 - 6A10
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	6A
Voltage - Forward (Vf) (Max) @ If	950mV @ 6A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 50V
Capacitance @ Vr, F	150pF @ 4V, 1MHz
Mounting Type	Through Hole

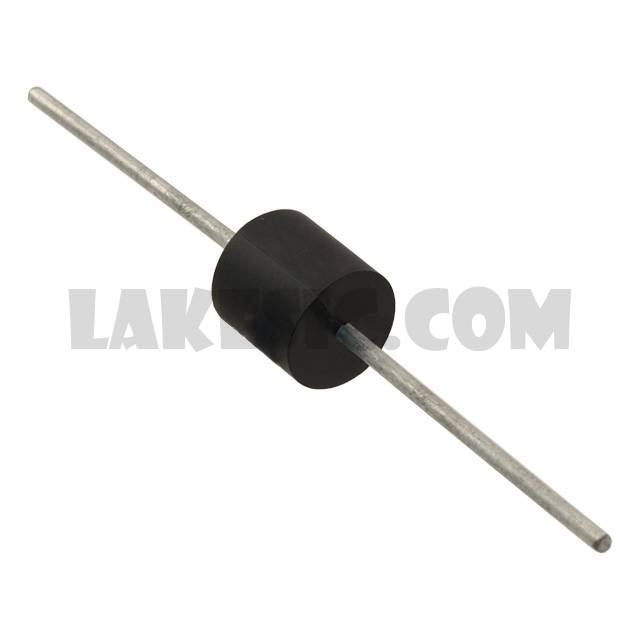

Package / Case	R6, Axial
Supplier Device Package	R-6
Operating Temperature - Junction	-55°C ~ 125°C
Base Part Number	6A05
