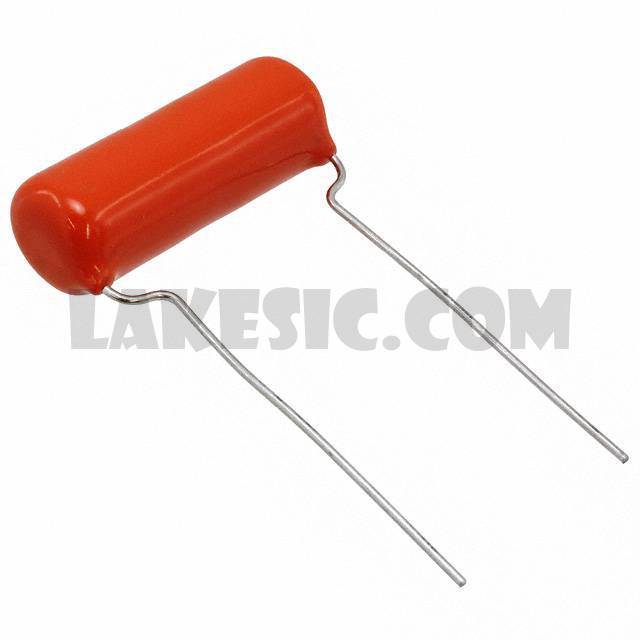

715P22358LD3

Part Number715P22358LD3

ManufacturerCornell Dubilier Electronics (CDE)

DescriptionCAP FILM 0.022UF 5% 800VDC RAD

Datasheet715P Series

Package / CaseRadial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description0.022µF Film Capacitor 450V 800V Polypropylene (PP), Metallized Radial

To learn about the specification of 715P22358LD3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 715P22358LD3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 715P22358LD3.
We are offering 715P22358LD3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

715P22358LD3 - Product Attributes

Categories	Capacitors / Film Capacitors
Datasheet	715P Series
Standard Package	100
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	Orange Drop® 715P
Packaging	Bulk
Part Status	Active
Capacitance	0.022µF
Tolerance	±5%
Voltage Rating - AC	450V
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 85°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.441" Dia x 1.252" L (11.20mm x 31.80mm)
Height - Seated (Max)	0.752" (19.10mm)
Termination	PC Pins
Lead Spacing	0.720" (18.30mm)
Applications	High Frequency, Switching; High Pulse, DV/DT; Snubber
Ratings	-
Features	-
