Categories	Filters / Ferrite Beads and Chips
Datasheet	74279224401 Drawing
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-MPSB
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	-
Number of Lines	1
Impedance @ Frequency	400 Ohms @ 100MHz
Current Rating (Max)	4.5A
DC Resistance (DCR) (Max)	20mOhm
Ratings	-
Operating Temperature	-55°C ~ 125°C
Package / Case	2220 (5650 Metric)
Mounting Type	Surface Mount
Height (Max)	0.136" (3.45mm)
Size / Dimension	0.220" L x 0.200" W (5.59mm x 5.08mm)

74279221100	Wurth Electronics Inc., 10 Ohms @ 100MHz 1 Ferrite Bead 1206 (3216 Metric) 10.5A 3mOhm, WE-MPSB	View
7427922808	Wurth Electronics Inc., 8 Ohms @ 100MHz 1 Ferrite Bead 0603 (1608 Metric) 9.5A 5mOhm, WE-MPSB	View
74279220321	Wurth Electronics Inc., 320 Ohms @ 100MHz 1 Ferrite Bead 0805 (2012 Metric) 2.5A 50mOhm, WE-MPSB	View
74279228260	Wurth Electronics Inc., 26 Ohms @ 100MHz 1 Ferrite Bead 0603 (1608 Metric) 6.5A 8mOhm, WE-MPSB	View
74279225101	Wurth Electronics Inc., 100 Ohms @ 100MHz 1 Ferrite Bead 3412 (8531 Metric) 10A 4mOhm, WE-MPSB	View
74279220601	Wurth Electronics Inc., 600 Ohms @ 100MHz 1 Ferrite Bead 0805 (2012 Metric) 2.1A 80mOhm, WE-MPSB	View
74279221281	Wurth Electronics Inc., 280 Ohms @ 100MHz 1 Ferrite Bead 1206 (3216 Metric) 3.5A 35mOhm, WE-MPSB	View
74279220601	Wurth Electronics Inc., 600 Ohms @ 100MHz 1 Ferrite Bead 0805 (2012 Metric) 2.1A 80mOhm, WE-MPSB	View
74279221111	Wurth Electronics Inc., 110 Ohms @ 100MHz 1 Ferrite Bead 1206 (3216 Metric) 5.4A 15mOhm, WE-MPSB	View
74279224151	Wurth Electronics Inc., 150 Ohms @ 100MHz 1 Ferrite Bead 2220 (5650 Metric) 5A 10mOhm, WE-MPSB	View
74279224551	Wurth Electronics Inc., 550 Ohms @ 100MHz 1 Ferrite Bead 2220 (5650 Metric) 4A 35mOhm, WE-MPSB	View
74279226101	Wurth Electronics Inc., 100 Ohms @ 100MHz 1 Ferrite Bead 1812 (4532 Metric) 8A 6mOhm, WE-MPSB	View

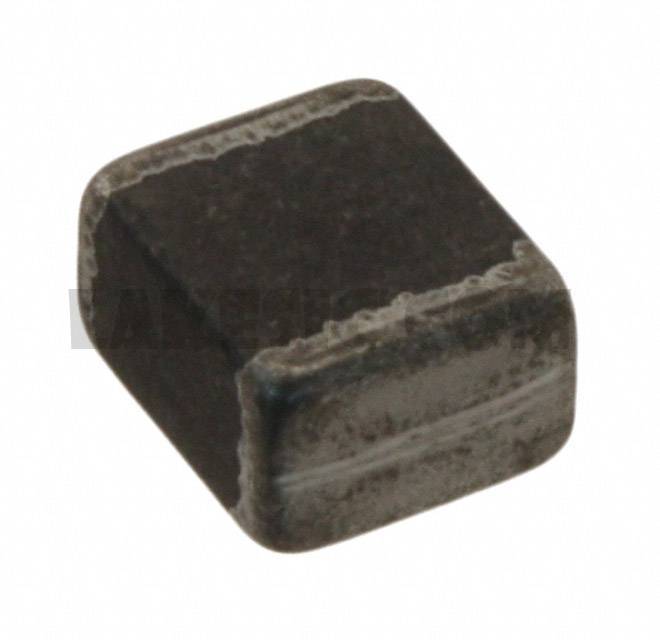

74279224401

Part Number74279224401
