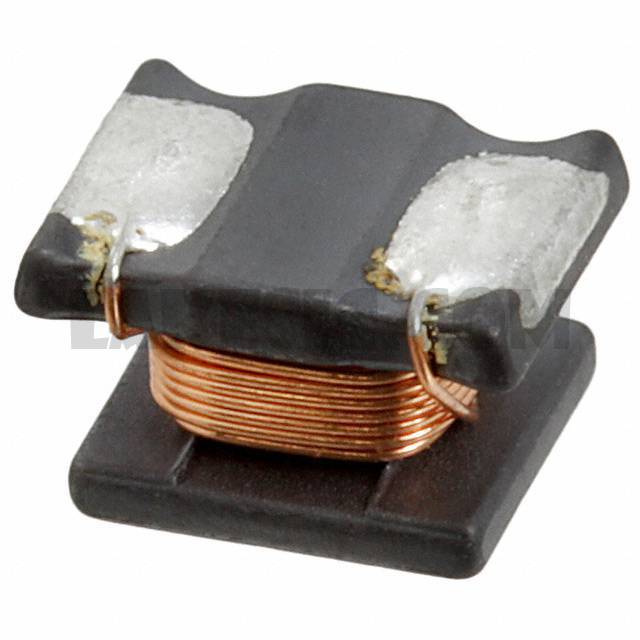

744045220


744045220

Part Number744045220

Manufacturer

Description

Datasheet

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744045220 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerWurth Electronics Inc.
SeriesWE-LQ
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance22µH
Tolerance±10%
Current Rating (Amps)630mA
Current - Saturation1A
ShieldingUnshielded
DC Resistance (DCR)700mOhm Max
Q @ Freq50 @ 1MHz
Frequency - Self Resonant20MHz
Ratings-
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1MHz
Mounting TypeSurface Mount
Package / Case1812 (4532 Metric)
Supplier Device Package1812
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)0.114" (2.90mm)
