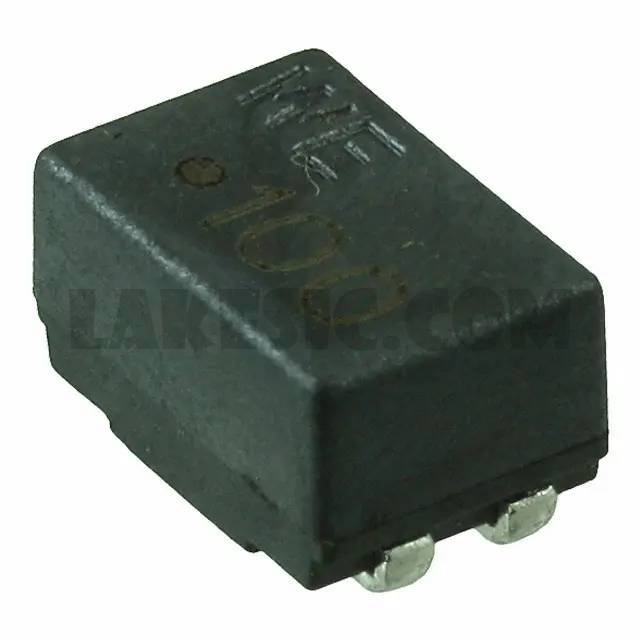

744226


744226

Part Number744226

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744226 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-SL2
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency920 Ohms @ 100MHz
Inductance @ Frequency10µH @ 1kHz
Current Rating (Max)1.6A
DC Resistance (DCR) (Max)80mOhm
Voltage Rating - DC80V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max)0.205" (5.20mm)
Package / CaseHorizontal, 4 PC Pad
