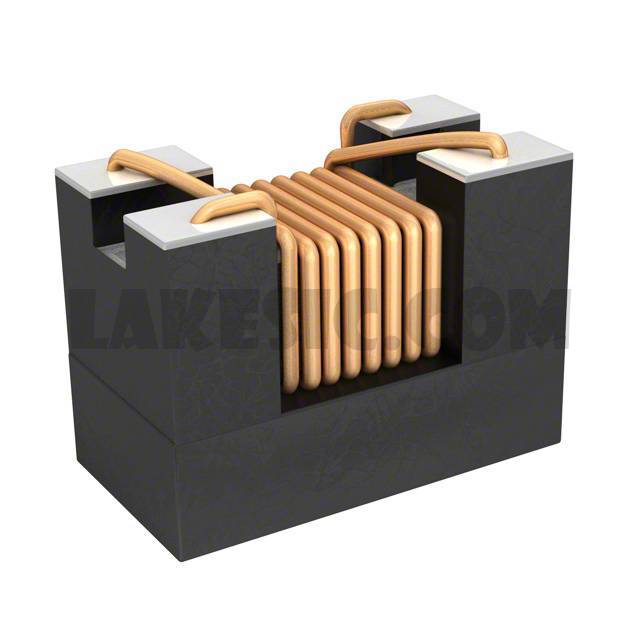

744235601


744235601

Part Number744235601

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

744235601 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package500
ManufacturerWurth Electronics Inc.
SeriesWE-CNSW
PackagingTape & Reel (TR)
Part StatusActive
Filter TypeSignal Line
Number of Lines2
Impedance @ Frequency600 Ohms @ 100MHz
Inductance @ Frequency1µH @ 100kHz
Current Rating (Max)1.2A
DC Resistance (DCR) (Max)120mOhm
Voltage Rating - DC60V
Voltage Rating - AC-
Operating Temperature-40°C ~ 125°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)0.118" (3.00mm)
Package / CaseHorizontal, 4 PC Pad
