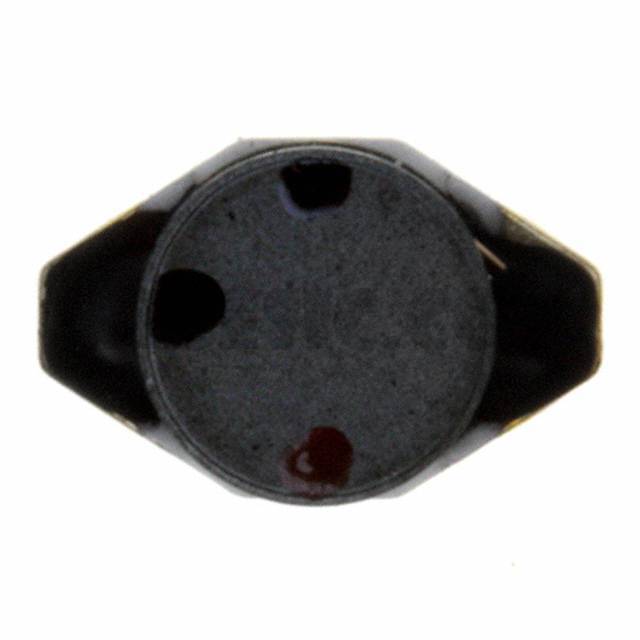

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	7445510
Standard Package	500
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	1.2A
Current - Saturation	1.1A
Shielding	Unshielded
DC Resistance (DCR)	160mOhm Max
Q @ Freq	-
Frequency - Self Resonant	26MHz
Ratings	-
Operating Temperature	-40°C ~ 100°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.115" (2.92mm)
