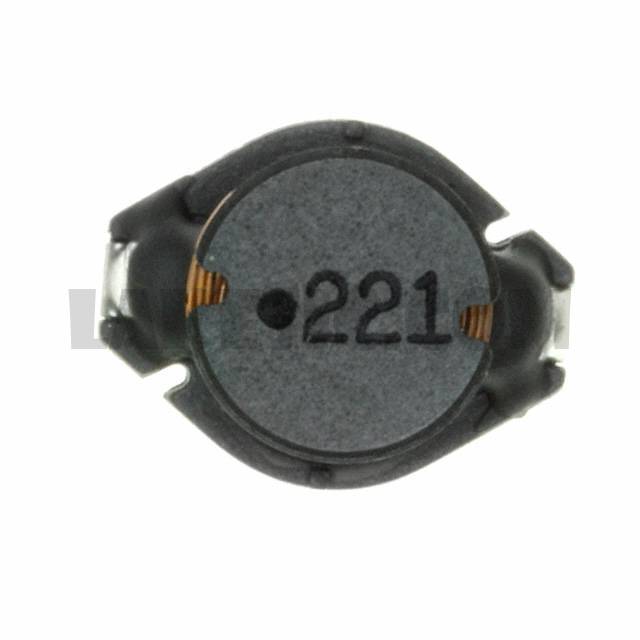

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74456222
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD4
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	220µH
Tolerance	±10%
Current Rating (Amps)	900mA
Current - Saturation	1.1A
Shielding	Unshielded
DC Resistance (DCR)	780mOhm Max
Q @ Freq	-
Frequency - Self Resonant	4.7MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max)	0.209" (5.30mm)
