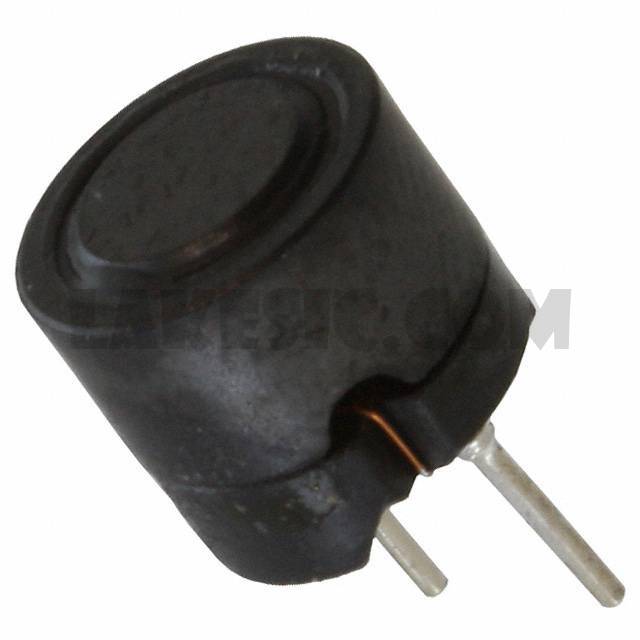

744731222

744731222

Part Number744731222

ManufacturerWurth Electronics Inc.

DescriptionFIXED IND 2.2MH 200MA 4.6 OHM TH

Datasheet744731222

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2mH Shielded Wirewound Inductor 200mA 4.6Ohm Max Radial, Vertical Cylinder

To learn about the specification of 744731222, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744731222 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744731222.
We are offering 744731222 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

744731222 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	744731222
Standard Package	140
Manufacturer	Wurth Electronics Inc.
Series	WE-TIS
Packaging	Tray
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2mH
Tolerance	±10%
Current Rating (Amps)	200mA
Current - Saturation	180mA
Shielding	Shielded
DC Resistance (DCR)	4.6Ohm Max
Q @ Freq	-
Frequency - Self Resonant	1.1MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.307" Dia (7.80mm)
Height - Seated (Max)	0.295" (7.50mm)
