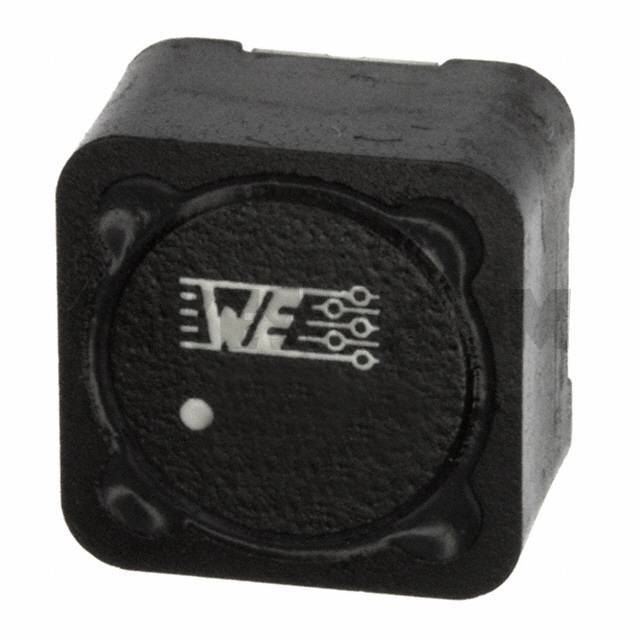

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74477002
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.4µH
Tolerance	-20%, +40%
Current Rating (Amps)	10.1A
Current - Saturation	14.3A
Shielding	Shielded
DC Resistance (DCR)	12mOhm Max
Q @ Freq	-
Frequency - Self Resonant	41MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.315" (8.00mm)
