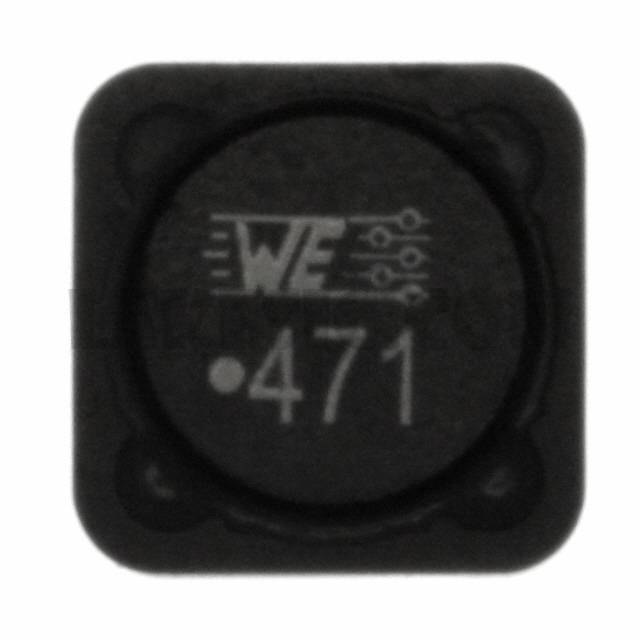

7447709471


7447709471

Part Number7447709471

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447709471 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package250
ManufacturerWurth Electronics Inc.
SeriesWE-PD
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance470µH
Tolerance±20%
Current Rating (Amps)1.4A
Current - Saturation1.5A
ShieldingShielded
DC Resistance (DCR)560mOhm Max
Q @ Freq-
Frequency - Self Resonant1.8MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test1kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)0.394" (10.00mm)
