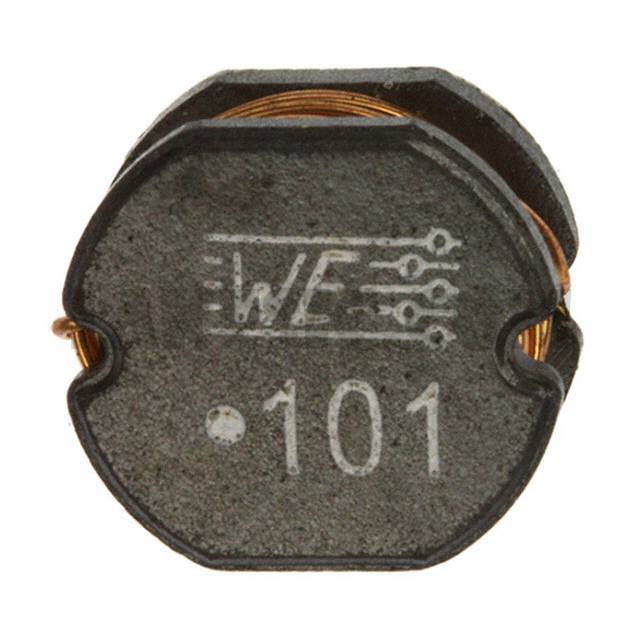

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	74477620
Standard Package	1
Manufacturer	Wurth Electronics Inc.
Series	WE-PD2
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	100µH
Tolerance	±10%
Current Rating (Amps)	1.02A
Current - Saturation	1.1A
Shielding	Unshielded
DC Resistance (DCR)	350mOhm Max
Q @ Freq	-
Frequency - Self Resonant	7.5MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max)	0.232" (5.90mm)
