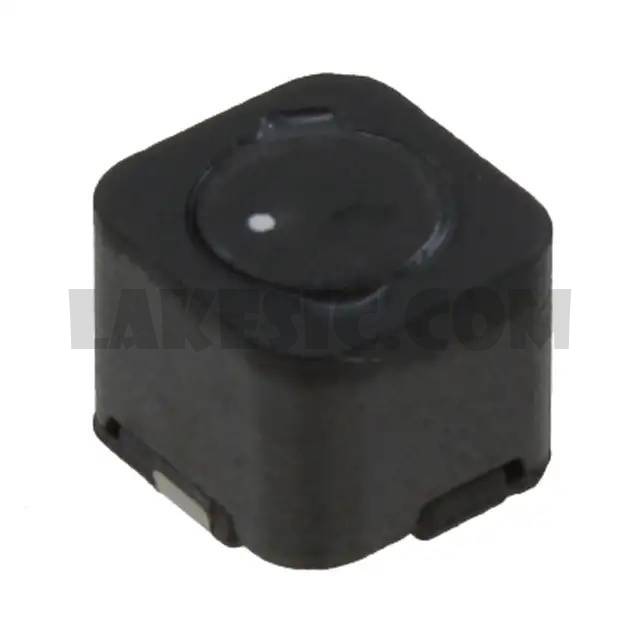

7447786004


7447786004

Part Number7447786004

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

7447786004 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1000
ManufacturerWurth Electronics Inc.
SeriesWE-PD Robust
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7µH
Tolerance±25%
Current Rating (Amps)2.8A
Current - Saturation2.8A
ShieldingShielded
DC Resistance (DCR)65mOhm Max
Q @ Freq-
Frequency - Self Resonant72MHz
RatingsAEC-Q200
Operating Temperature-40°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Max)0.201" (5.10mm)
