744821120
744821120

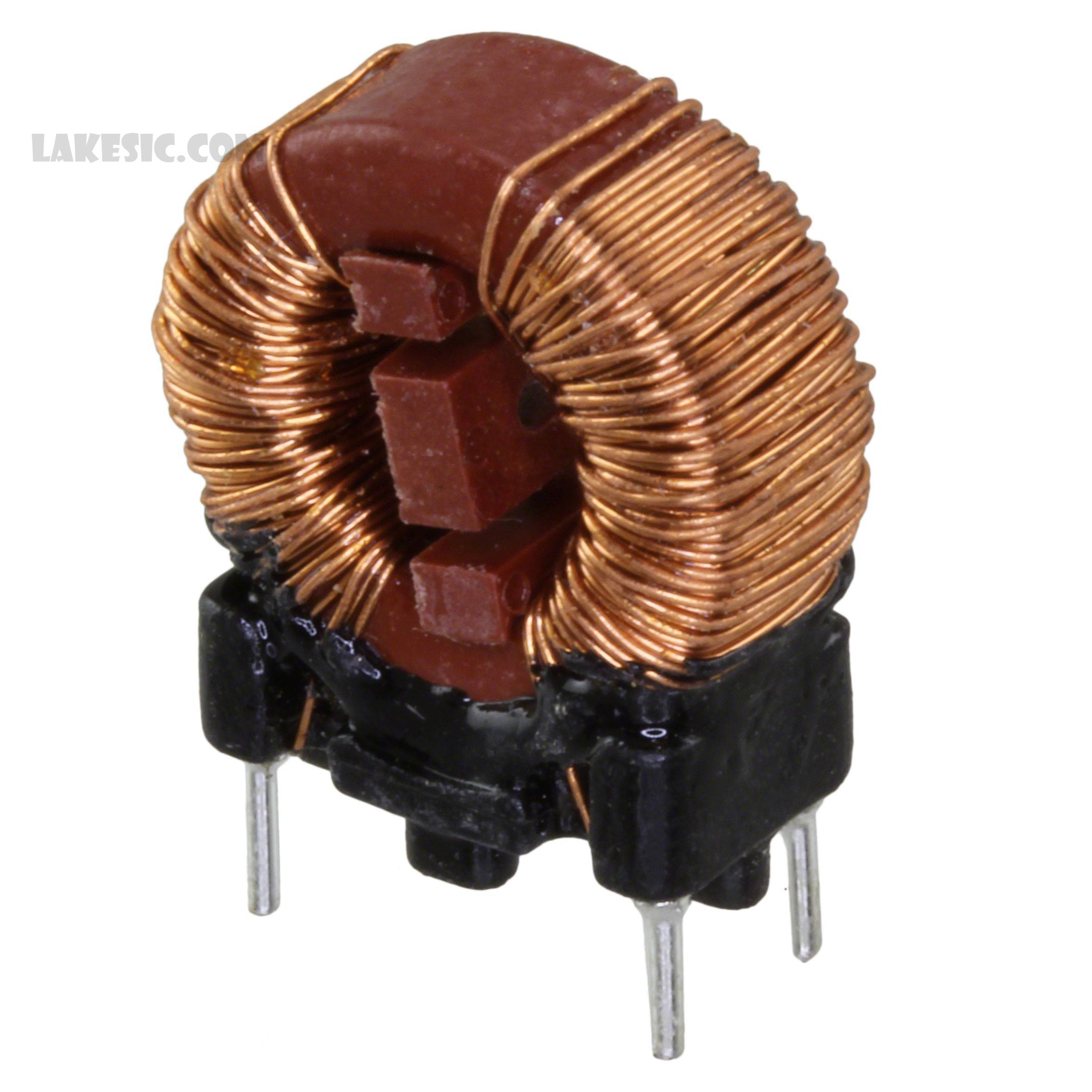

Part Number 744821120 Description CMC 20MH 500MA 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm
To learn about the specification of 744821120, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 744821120 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 744821120.
We are offering 744821120 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
744821120 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet 744821120 Standard Package 300 Manufacturer Wurth Electronics Inc. Series WE-CMB Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 20mH @ 10kHz Current Rating (Max) 500mA DC Resistance (DCR) (Max) 1Ohm Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 0.591" L x 0.295" W (15.00mm x 7.50mm) Height (Max) 0.689" (17.50mm) Package / Case Vertical, 4 PC Pin
744821120 - Related ProductsMore >>
744821120 Wurth Electronics Inc., 20mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1Ohm, WE-CMB
View
744821240 Wurth Electronics Inc., 4mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 140mOhm, WE-CMB
View
744834405 Wurth Electronics Inc., 5mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 50mOhm, WE-CMBH
View
7448262510 Wurth Electronics Inc., 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 25A DCR 4.5mOhm, WE-CMB
View
S14100037 Wurth Electronics Inc., 1mH @ 10kHz 2 Line Common Mode Choke Through Hole 15A DCR 7.5mOhm, WE-CMBH
View
7448251201 Wurth Electronics Inc., 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 12A DCR 9mOhm, WE-CMB
View
7448225007 Wurth Electronics Inc., 700µH @ 100kHz 2 Line Common Mode Choke Through Hole 5A DCR 15mOhm, WE-CMB HC
View
744834622 Wurth Electronics Inc., 2.2mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 22mOhm, WE-CMBH
View
744825510 Wurth Electronics Inc., 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 5A DCR 55mOhm, WE-CMB
View
744842932 Wurth Electronics Inc., 32µH @ 100kHz 2 Line Common Mode Choke Through Hole 8.5A DCR 5.5mOhm, WE-CMB
View
7448258022 Wurth Electronics Inc., 2.2mH @ 10kHz 2 Line Common Mode Choke Through Hole 8A DCR 14mOhm, WE-CMB
View
7448227005 Wurth Electronics Inc., 450µH @ 100kHz 2 Line Common Mode Choke Through Hole 6.5A DCR 10mOhm, WE-CMB HC
View
