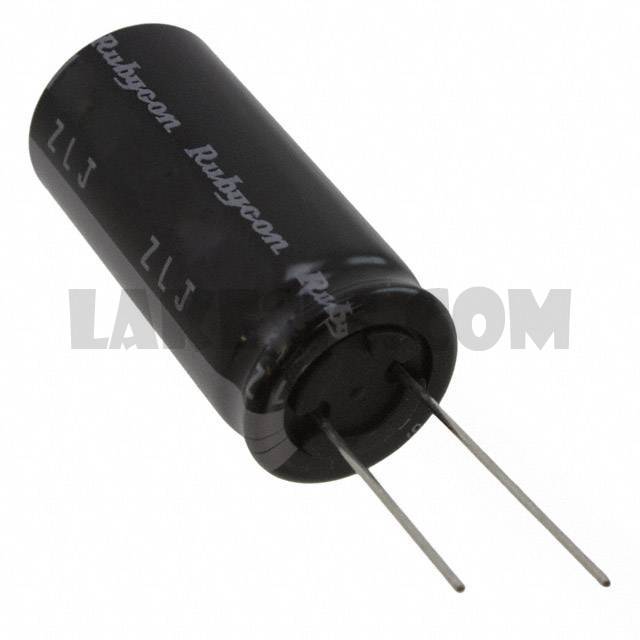

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ZLJ Series
Standard Package	1
Manufacturer	Rubycon
Series	ZLJ
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.375A @ 120Hz
Ripple Current @ High Frequency	2.5A @ 100kHz
Impedance	36 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.063" (27.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

6.3ZLJ2700M10X20	Rubycon, 2700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
80ZLJ1000M18X35.5	Rubycon, 1000µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
10ZLJ1800M10X20	Rubycon, 1800µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ2700M12.5X35	Rubycon, 2700µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
10ZLJ2200MT810X25	Rubycon, 2200µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
80ZLJ680MGC18X25	Rubycon, 680µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ470M16X31.5	Rubycon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
100ZLJ330M12.5X35	Rubycon, 330µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ3300M16X25	Rubycon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ820M12.5X30	Rubycon, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
25ZLJ560M8X20	Rubycon, 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View
50ZLJ390MT810X25	Rubycon, 390µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ZLJ	View

80ZLJ680MGC18X25

Part Number80ZLJ680MGC18X25
