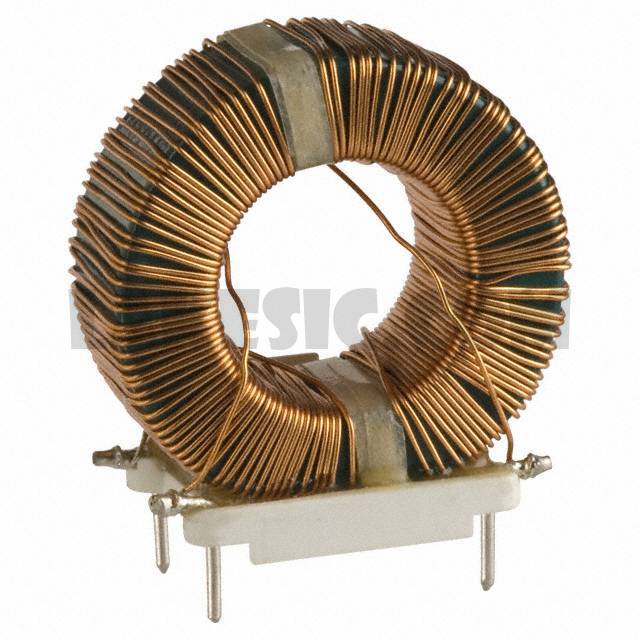

Part Number8117

ManufacturerBourns Inc.

DescriptionCMC 36MH 2.9A 2LN TH

Datasheet8100 Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description36mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 300mOhm

To learn about the specification of 8117, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 8117 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 8117.
We are offering 8117 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

8117 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

8100 Series

Standard Package

Manufacturer

Bourns Inc.

Series

8100

Packaging

Tray

Part Status

Obsolete

Filter Type

Number of Lines

Inductance @ Frequency

36mH @ 1kHz

Current Rating (Max)

2.9A

DC Resistance (DCR) (Max)

300mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.550" L x 0.800" W (39.37mm x 20.32mm)

Height (Max)

1.650" (41.91mm)

Package / Case

Vertical, 4 PC Pin

Base Part Number
