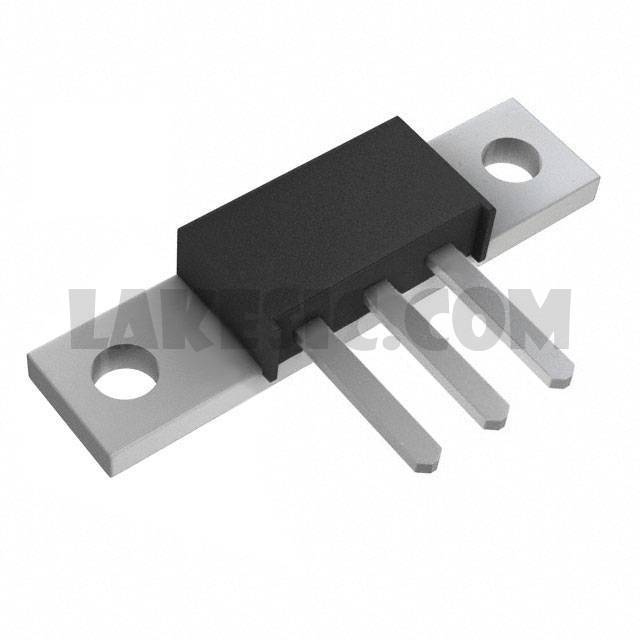

83CNQ100

Part Number83CNQ100

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 100V 40A PRM2

Datasheet83CNQ080, 83CNQ100

Package / CasePRM2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 100V 40A Chassis Mount PRM2

To learn about the specification of 83CNQ100, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 83CNQ100 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 83CNQ100.
We are offering 83CNQ100 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

83CNQ100 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	83CNQ080, 83CNQ100
Standard Package	48
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io) (per Diode)	40A
Voltage - Forward (Vf) (Max) @ If	1V @ 40A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.5mA @ 100V
Operating Temperature - Junction	-55°C ~ 175°C
Mounting Type	Chassis Mount
Package / Case	PRM2
Supplier Device Package	PRM2
