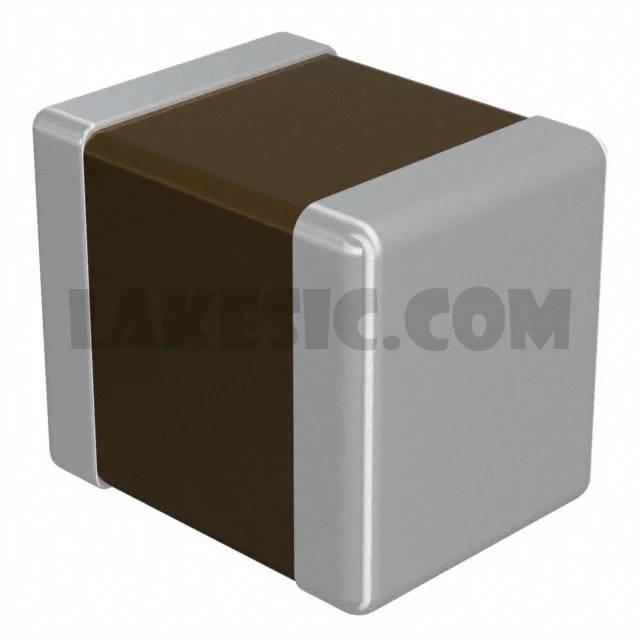

Categories	Capacitors / Ceramic Capacitors
Datasheet	885012209009 Drawing
Standard Package	3000
Manufacturer	Wurth Electronics Inc.
Series	WCAP-CSGP
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	0.47µF
Tolerance	±10%
Voltage - Rated	16V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	-
Ratings	-
Applications	General Purpose
Mounting Type	Surface Mount, MLCC
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.041" (1.05mm)
Lead Spacing	-
Lead Style	-
