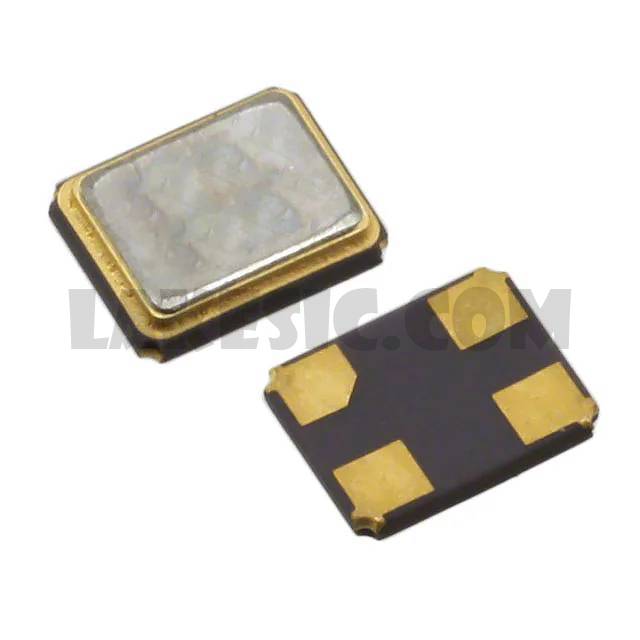

ABM8-166-114.285MHZ-T2


ABM8-166-114.285MHZ-T2

Part NumberABM8-166-114.285MHZ-T2

Manufacturer

Description

Datasheet

Package / Case4-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ABM8-166-114.285MHZ-T2 - Product Attributes

Categories Crystals, Oscillators, Resonators / Crystals
Datasheet
Standard Package2000
ManufacturerAbracon LLC
SeriesABM8
PackagingTape & Reel (TR)
Part StatusActive
TypeMHz Crystal
Frequency114.285MHz
Frequency Stability±20ppm
Frequency Tolerance±20ppm
Load Capacitance18pF
ESR (Equivalent Series Resistance)80 Ohms
Operating Mode3rd Overtone
Operating Temperature-40°C ~ 85°C
Ratings-
Mounting TypeSurface Mount
Package / Case4-SMD, No Lead
Size / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)0.031" (0.80mm)
