Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ACGRA4001-HF ~ ACGRA4007-HF
Standard Package	5000
Manufacturer	Comchip Technology
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1000V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	2.5µs
Current - Reverse Leakage @ Vr	5µA @ 1000V
Capacitance @ Vr, F	2.5pF @ 4V, 1MHz
Mounting Type	Surface Mount

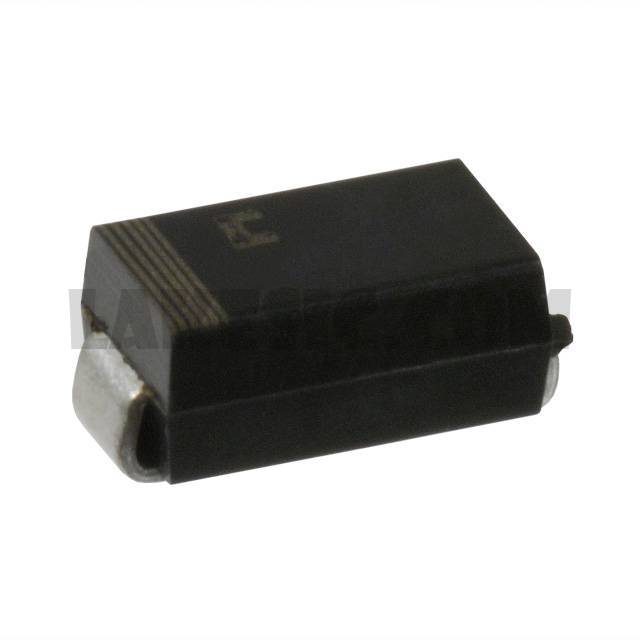

Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
Operating Temperature - Junction	-55°C ~ 150°C
