Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ACGRAT101-HF~105-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1V @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5µA @ 600V
Capacitance @ Vr, F	8pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	2010 (5025 Metric)
Supplier Device Package	2010
Operating Temperature - Junction	-65°C ~ 175°C

SDURF1560	SMC Diode Solutions, Diode Standard 600V 15A Through Hole ITO-220AC,	View
CMPD6001 TR	Central Semiconductor Corp, Diode Standard 75V 250mA Surface Mount SOT-23,	View
VS-8ETX06-M3	Vishay Semiconductor Diodes Division, Diode Standard 600V 8A Through Hole TO-220AC, FRED Pt®	View
CS3D-E3/I	Vishay Semiconductor Diodes Division, Diode Standard 200V 2A Surface Mount DO-214AB (SMC),	View
ES2B-E3/52T	Vishay Semiconductor Diodes Division, Diode Standard 100V 2A Surface Mount DO-214AA (SMB),	View
NRVHPM120T3G	ON Semiconductor, Diode Standard 200V 1A Surface Mount Powermite, Automotive, AEC-Q101	View
1N4148X-TP	Micro Commercial Co, Diode Standard 75V 150mA Surface Mount SOD-523,	View
SFF1604G C0G	Taiwan Semiconductor Corporation, Diode Standard 200V 16A Through Hole ITO-220AB,	View
CMR1F-06M TR13	Central Semiconductor Corp, Diode Standard 600V 1A Surface Mount SMA,	View
S4B R7G	Taiwan Semiconductor Corporation, Diode Standard 100V 4A Surface Mount DO-214AB (SMC),	View
RURG5060	ON Semiconductor, Diode Standard 600V 50A Through Hole TO-247-2,	View
MSR860G	ON Semiconductor, Diode Standard 600V 8A Through Hole TO-220-2, SWITCHMODE™	View

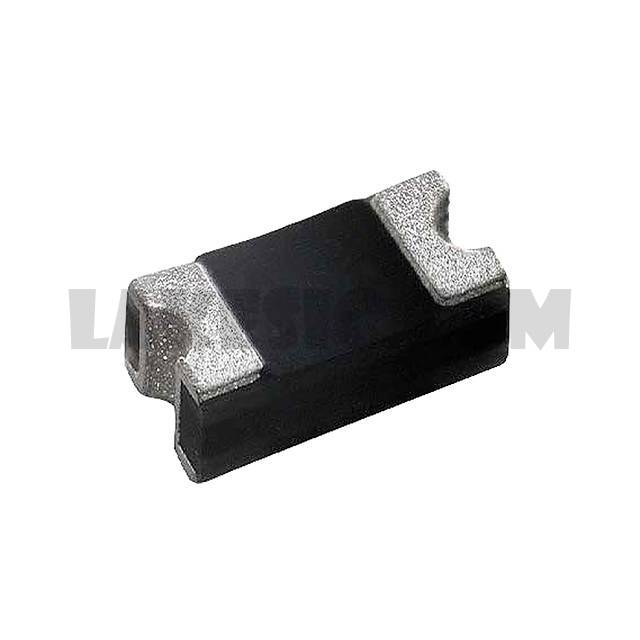

ACGRAT103-HF
