Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	ACGRTS4001-HF Thru. ACGRTS4007-HF
Standard Package	3000
Manufacturer	Comchip Technology
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	50V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1V @ 1A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10µA @ 50V
Capacitance @ Vr, F	6pF @ 4V, 1MHz
Mounting Type	Surface Mount

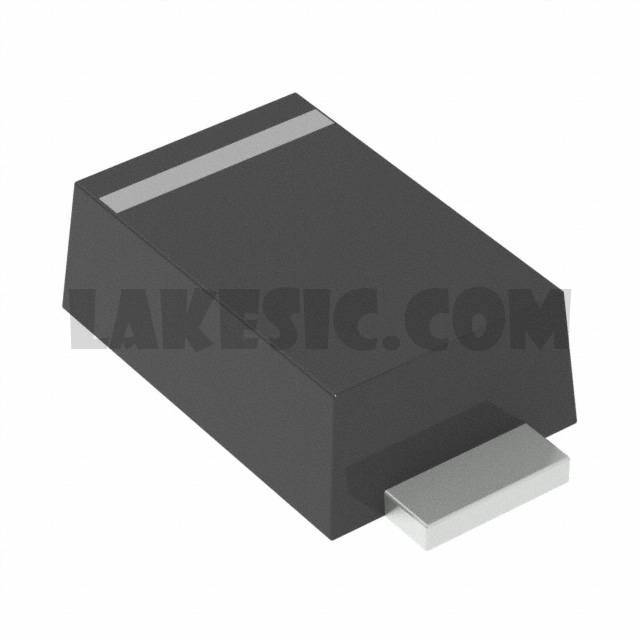

Package / Case	SOD-123F
Supplier Device Package	TS/SOD-123FL
Operating Temperature - Junction	-55°C ~ 150°C
