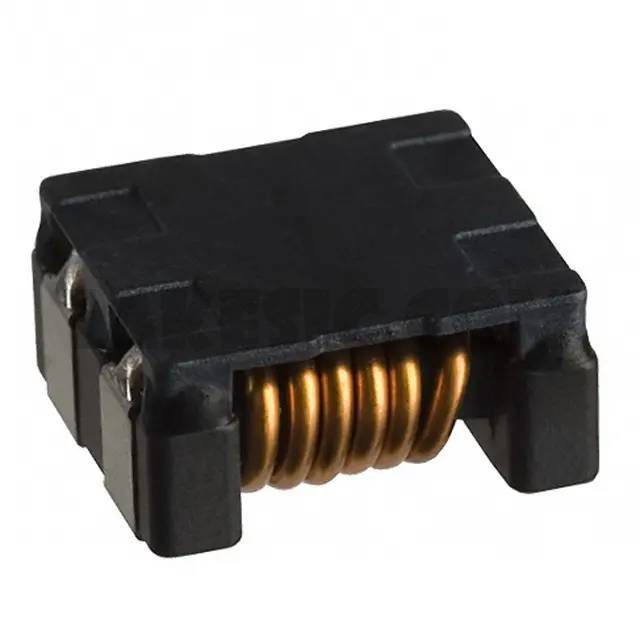

ACM12V-701-2PL-TL00
ACM12V-701-2PL-TL00
Part Number ACM12V-701-2PL-TL00 Description CMC 8A 2LN 700 OHM SMD AEC-Q200 Package / Case Horizontal, 4 J-LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 8A DCR 6mOhm
To learn about the specification of ACM12V-701-2PL-TL00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ACM12V-701-2PL-TL00 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ACM12V-701-2PL-TL00.
We are offering ACM12V-701-2PL-TL00 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
ACM12V-701-2PL-TL00 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet ACM12V Series, Automotive Standard Package 500 Manufacturer TDK Corporation Series ACM-V Packaging Tape & Reel (TR) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 700 Ohms @ 100MHz Current Rating (Max) 8A DC Resistance (DCR) (Max) 6mOhm Voltage Rating - DC 80V Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings AEC-Q200 Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.472" L x 0.433" W (12.00mm x 11.00mm) Height (Max) 0.236" (6.00mm) Package / Case Horizontal, 4 J-Lead
