Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	AIKQ100N60CT
Standard Package	240
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q101, TrenchStop™
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	160A
Current - Collector Pulsed (Icm)	400A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 100A
Power - Max	714W
Switching Energy	3.1mJ (on), 2.5mJ (off)
Input Type	Standard
Gate Charge	610nC
Td (on/off) @ 25°C	30ns/290ns
Test Condition	400V, 100A, 3.6Ohm, 15V
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole

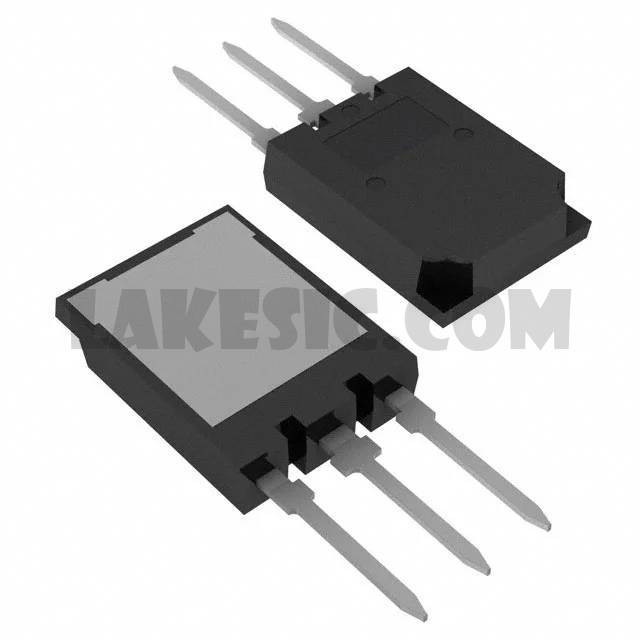

Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3-46
