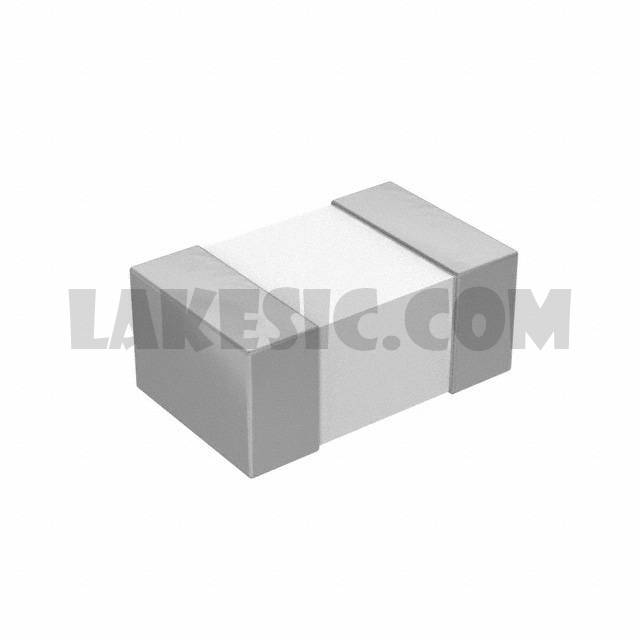

AIMC-0805-R18J-T

Part NumberAIMC-0805-R18J-T

ManufacturerAbracon LLC

DescriptionFIXED IND 180NH 300MA 1.2 OHM

DatasheetAIMC-0805 Series

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description180nH Unshielded Multilayer Inductor 300mA 1.2Ohm Max 0805 (2012 Metric)

To learn about the specification of AIMC-0805-R18J-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AIMC-0805-R18J-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AIMC-0805-R18J-T.
We are offering AIMC-0805-R18J-T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AIMC-0805-R18J-T - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AIMC-0805 Series

Standard Package

Manufacturer

Abracon LLC

Series

AIMC-0805

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Multilayer

Material - Core

Ceramic

Inductance

180nH

Tolerance

±5%

Current Rating (Amps)

300mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

1.2Ohm Max

Q @ Freq

13 @ 50MHz

Frequency - Self Resonant

400MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

50MHz

Mounting Type

Surface Mount

Package / Case

0805 (2012 Metric)

Supplier Device Package

0805 (2012 Metric)

Size / Dimension

0.079" L x 0.049" W (2.00mm x 1.25mm)

Height - Seated (Max)

0.041" (1.05mm)
