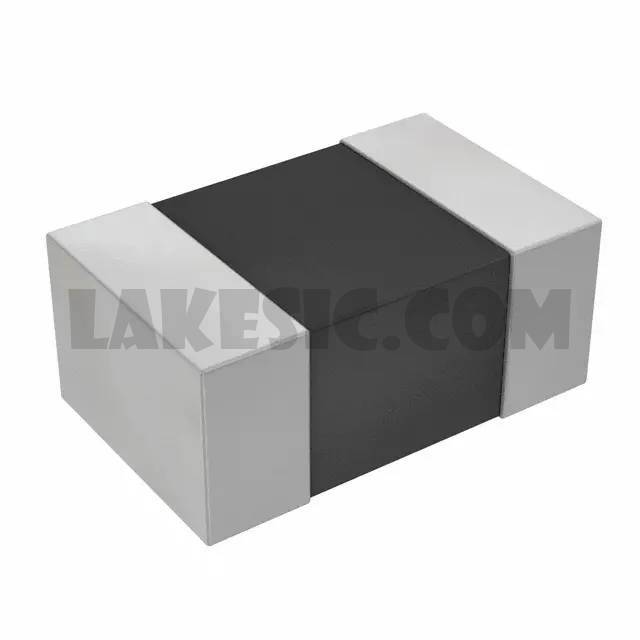

AIML-0805HC-220M-T

Part NumberAIML-0805HC-220M-T

ManufacturerAbracon LLC

DescriptionFIXED IND 22UH 300MA 700 MOHM

DatasheetAIML-0805HC Series Datasheet

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Multilayer Inductor 300mA 700mOhm 0805 (2012 Metric)

To learn about the specification of AIML-0805HC-220M-T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AIML-0805HC-220M-T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AIML-0805HC-220M-T.
We are offering AIML-0805HC-220M-T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AIML-0805HC-220M-T - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AIML-0805HC Series Datasheet

Standard Package

Manufacturer

Abracon LLC

Series

AIML-0805HC

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Multilayer

Material - Core

Ferrite

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

300mA

Current - Saturation

40mA

Shielding

Shielded

DC Resistance (DCR)

700mOhm

Q @ Freq

Frequency - Self Resonant

18MHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

1MHz

Mounting Type

Surface Mount

Package / Case

0805 (2012 Metric)

Supplier Device Package

0805 (2012 Metric)

Size / Dimension

0.079" L x 0.049" W (2.00mm x 1.25mm)

Height - Seated (Max)

0.049" (1.25mm)
