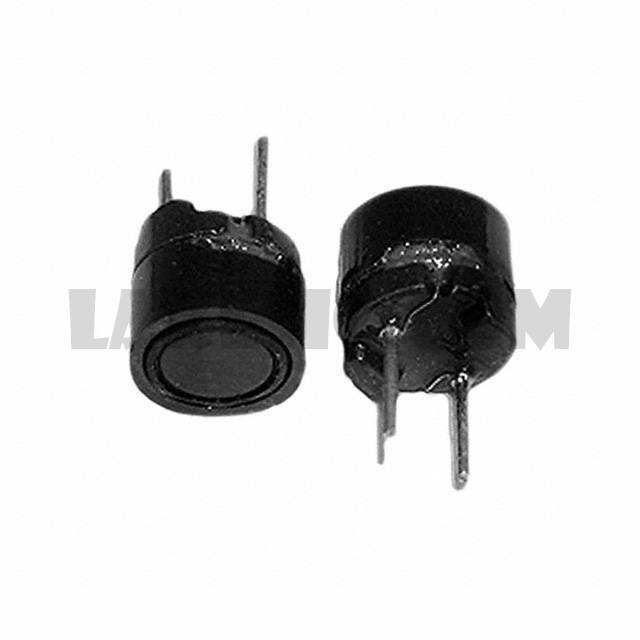

AISR-01-123J

Part NumberAISR-01-123J

ManufacturerAbracon LLC

DescriptionFIXED IND 12MH 25MA 13 OHM TH

DatasheetAISR-01 Series Datasheet

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description12mH Shielded Wirewound Inductor 25mA 13Ohm Max Radial, Vertical Cylinder

To learn about the specification of AISR-01-123J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AISR-01-123J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AISR-01-123J.
We are offering AISR-01-123J for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AISR-01-123J - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AISR-01 Series Datasheet

Standard Package

400

Manufacturer

Abracon LLC

Series

AISR-01

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

12mH

Tolerance

±5%

Current Rating (Amps)

25mA

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

13Ohm Max

Q @ Freq

100 @ 50kHz

Frequency - Self Resonant

220kHz

Ratings

Operating Temperature

-25°C ~ 85°C

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical Cylinder

Supplier Device Package

Size / Dimension

0.425" Dia (10.80mm)

Height - Seated (Max)

0.551" (14.00mm)
